KE0650 RE

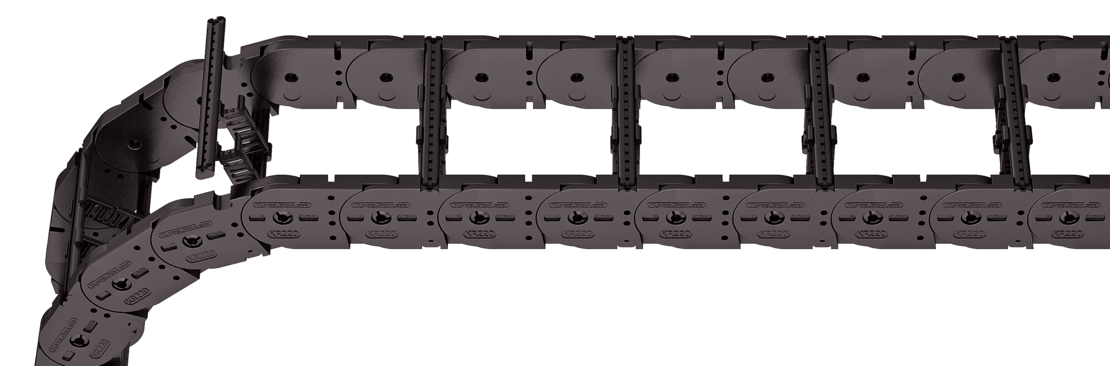

Plastic stay RE – screw-in frame stay

Vlastnosti

Plastic profile bars for light and medium loads. Assembly without screws.
Available customized in 8 mm grid.
Outside/inside: to open by rotating 90°.

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_i von 68 – 260 mm im 8 mm mriežka

Všetky piktogramy

Rozmery

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_k [mm]	B_EF [mm]	q_k [kg/m]
65	42	57,5	B_i + 28	B_i + 36	1,75 – 2,71

B_i [mm]
68	76	84	92	100	108	116	124	132	140
148	156	164	172	180	188	196	204	212	220
228	236	244	252	260

KR [mm]
75	115	145	175	220	300

Príklad objednania

KE0650

Typový rad

140

B_i [mm]

Konštrukcia mostíka

115

KR [mm]

2600

L_k [mm]

Usporiadanie mostíka

Pri posuvnom prevedení využite našu technickú podporu: info@kabelschlepp.sk

Vnútorné rozdelenie

Systémy oddeľovacích mriežok

The divider system is mounted on each crossbar as a standard – on every 2^nd chain link for stay mounting (HS – half-stayed).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral accelerations and applications with the cable carrier rotated by 90°, the dividers can easily be fixed by turning the frame stay by 180°. The arresting cams click into place in the locking grids in the crossbar (version B). The groove in the frame stay faces outwards.

Divider system TS0

without height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
A	6,5	13	8,8	–	2
B	13	16	11,8	8	2

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x Mriežka} [mm]	n_{T min}
A	6,5	13	8,8	–	2

The dividers can be moved in the cross section.

Divider system TS3

with height separation consisting of plastic partitions

Verzia	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	4	16 / 42^*	8	2

^* for aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Aluminum partitions with 1 mm increments with a_x > 42 mm are also available.

a_x (vzdialenosť stredov deliacich priečok) [mm]
a_c (užitočná šírka vnútornej komory) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using plastic partitions with a_x > 112 mm, we recommend an additional center support with a twin divider (S_T = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Príklad objednania

TS3

Systém mriežok

Verzia

n_T

Komora

a_x

VR1

VR3

výškové rozdelenie

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

Pripojovacie prvky

Universal end connectors UMB – plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom or face on.

K0650 Universal end connectors UMB – plastic

Bod pripojenia

F – fixed point
M – driver

Spôsob pripojenia

U – universal mounting bracket

Príklad objednania

UMB

pripojeniesprvok

pripojeniebod

Spôsob pripojenia

pripojeniesprvok

UMB

pripojeniebod

Spôsob pripojenia

We recommend the use of strain reliefs at the driver and fixed point.
