Laser machining applications

Conveyor systems for residue management at laser machines.

Today, laser machines are highly automated, and this increasingly applies to the disposal of waste and scale as well. Hinged belt conveyors and WAVE-BELT conveyors can be used.You can rely on our decades of experience in this area.

Selection by application

Guideline values for preselection

Type of Conveyor	Hinged belt conveyors		WAVE-BELT conveyors
Type of Conveyor	SRF 040	SRF 063	WBC 063
Sheet thickness	1 mm	1 mm	0.5 mm
Length	1 – 10 m	1 – 60 m	1 – 60 m
Conveyor speed	1 – 6 m/min	1.2 – 10 m/min	1.2 – 10 m/min
Belt width	100 – 600 mm	150 – 2100 mm	150 – 2100 mm

Deviating specifications on request

Sample applications

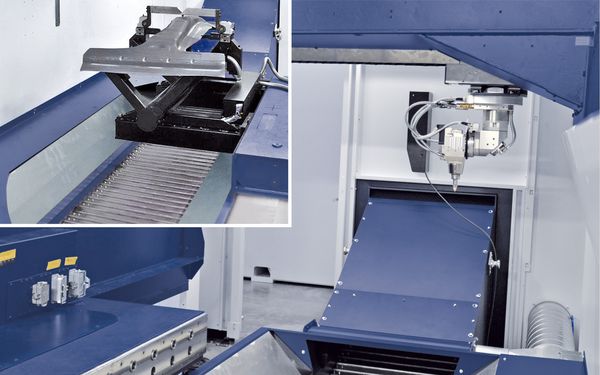

Conveyor system configuration on a laser cutting machine.

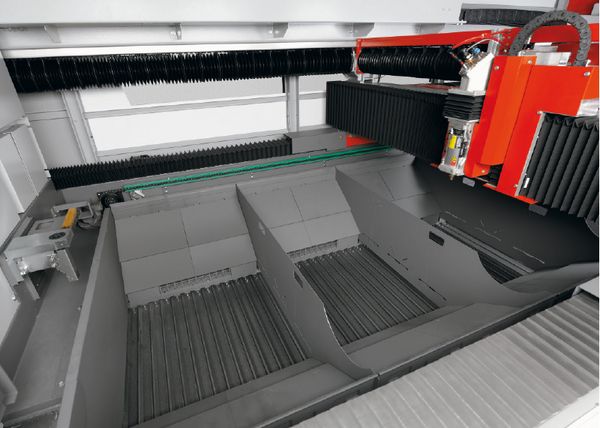

WAVE-BELT conveyor within the machine.

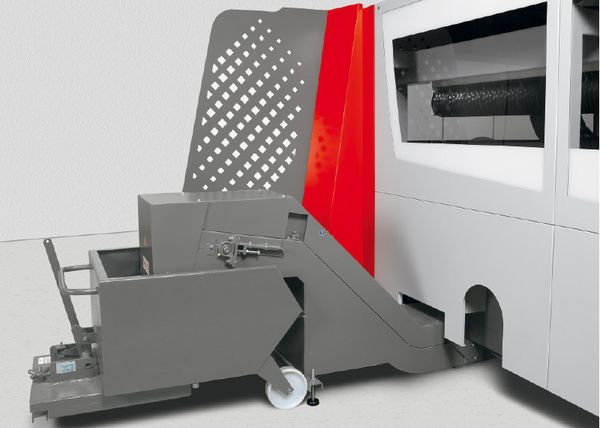

Discharge of parts into the container by the cross conveyor.

Start your inquiry

Please use the contact form for any inquiries you might have.

Matching with

Accessories and system components

Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.
