Turning, milling, drilling and sawing applications

Conveyor systems for wet and dry machining at machine tools.

Depending on the application, hinged belt conveyors or scraper belt conveyors may be the right choice. Hinged belt conveyors are mainly used for wool or long chips as well as tufts of chips. Scraper belt conveyors are mainly used for small and short chips.

Selection by application

Guideline values for preselection
Type of ConveyorHinged belt conveyorsScraper belt conveyors
SRF 040SRF 063SRF 100SRF 150KRF 040KRF 063KRF 100
Type of Chips wool or long chips, tufts of chips wool or long chips, tufts of chips wool or long chips, tufts of chips wool or long chips, tufts of chips short, broken chips up to 50 mm short, broken chips up to 50 mm short, broken chips up to 50 mm
Length 1 – 10 m 1 – 60 m 1.5 – 100 m 1.5 – 100 m 1 – 10 m 1 – 60 m 1.5 – 100 m
Conveying volume 1.50 m3/h,
guideline value 7.50 m3/h,
guideline value 15.00 m3/h,
guideline value 26.00 m3/h,
guideline value 0.40 m3/h,
guideline value 1.30 m3/h,
guideline value 3.40 m3/h,
guideline value

Conveyor speed

1 – 6 m/min 1.2 – 10 m/min 2.2 – 12 m/min 3 – 12 m/min 1 – 6 m/min 1.2 – 10 m/min 2.2 – 12 m/min
Belt width 100 – 600 mm 150 – 2100 mm 150 – 2100 mm 300 – 2100 mm 100 – 600 mm 150 – 1000 mm 150 – 1000 mm

Deviating specifications on request

Sample applications

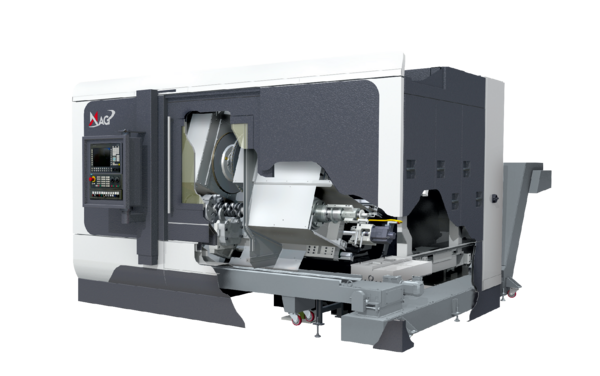

Turning, milling, drilling and sawing applications Sample 1

A combination of longitudinal and cross conveyors disposes of the chips on the crankshaft machining centers from MAG IAS.

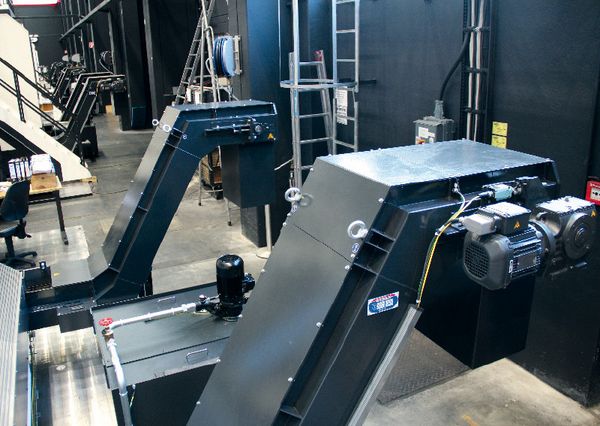

Turning, milling, drilling and sawing applications Sample 2

Modular design with serial character.

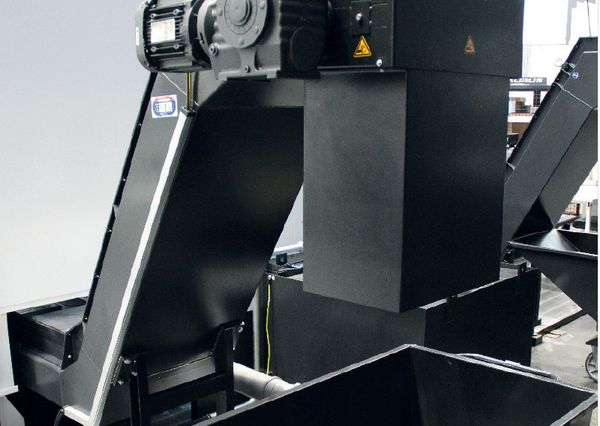

Turning, milling, drilling and sawing applications Sample 3

Chip disposal in chip container.

Start your inquiry

Please use the contact form for any inquiries you might have.

Matching with

Accessories and system components

Upon request, we can supply the right accessories and corresponding system components for your individual application. We are happy to assist you with planning and operational implementation of your project.

Accessories and system components

Service and spare parts

Even if installation conditions are difficult, our service team handles planning and installation of guideway protection and conveyor systems.

  • Repair Service
  • Predictive Maintenance
  • Turn Key Solutions

The experts at out our Service Center provide the support you need.
