TSUBAKI
KABELSCHLEPP

Crane/Port Industry

divider

Container giants, powerful handling equipment, optimized loading times – nowadays the smooth and efficient handling of goods requires highly efficient crane systems with high cycle rates and high travel speed. That is exactly why we equip port cranes of any type and size with our lightweight and high-performance plastic cable carriers. Our products fulfill all requirements in terms of speed, acceleration and travel length. They are robust and durable and ensure smooth and safe crane operation in the harsh environment of a harbor – regardless the climatic conditions.

Plus

We are always close to you!

Your global crane expert:
Peter Sebastian Pütz
Head of Crane Business
Business Development
Fon: +49 (0)2762 4003-322
Mobile: +49 (0)170 2086169
E-mail: peter.puetz@kabelschlepp.de

Reduce costs – increase lifetime
Cable carriers are the better alternative for crane systems

Our crane competence – your benefit

Having installed thousands of cranes systems worldwide, we are a competent and reliable partner for your individual application. Our crane specialists support you from the planning stage through the installation to the commissioning of the complete system.

In order to achieve an optimal upgrade to the respective equipment, our experts coordinate the components for your application on-site. We use standard components or adapt our systems to the existing structures – just as it is required.

Optionally, we also take care of the professional installation. We offer exactly the service and support you need:

Our systems – tested and approved

Safety and quality are immensely important when it comes to crane systems. Therefore, our cable carriers undergo extensive testing on our own outdoor test stand. Gliding and rolling systems with travel lengths of more than 100m as well as high-speed applications are tested under real conditions.

Products

TKHD series
Inner height 87
mm
Inner width 100 – 800
mm
Bending radius 250 – 360
mm
Travel length 13.5
m

TKHD series

Heavy duty cable carriers for long travel lengths and high additional loads

to the types of TKHD series
M series
Inner height 19 – 87
mm
Inner width 24 – 800
mm
Bending radius 37 – 500
mm
Travel length 10.8
m

M series

Variable cable carrier with extensive accessories and stay variants

to the types of M series
UNIFLEX Advanced series
Inner height 20 – 44
mm
Inner width 15 – 250
mm
Bending radius 28 – 300
mm
Travel length 7
m

UNIFLEX Advanced series

Light, quiet all-rounder with a wide range of applications*

* Some features can be different for certain types for design reasons.

to the types of UNIFLEX Advanced series
S/SX series
Inner height 26 – 578
mm
Inner width 35 – 1650
mm
Bending radius 75 – 2400
mm
Travel length 24.9
m

S/SX series

Extremely robust and sturdy steel cable carriers

to the types of S/SX series
QuickTrax® series
Inner height 20
mm
Inner width 15 – 65
mm
Bending radius 28 – 125
mm
Travel length 2.9
m

QuickTrax® series

Compact and cost-effective cable carriers in two-component technology

to the types of QuickTrax® series

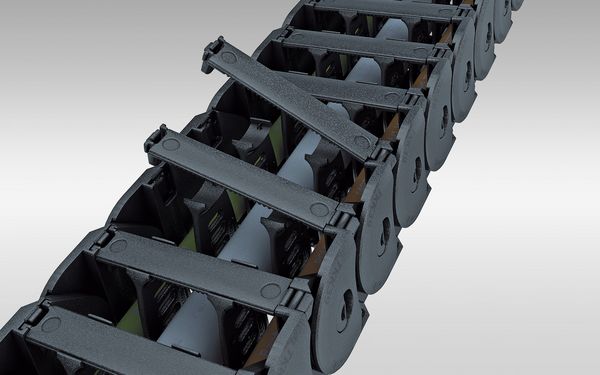

TKK series
Inner height 39
mm
Inner width 74
mm
Bending radius 46 – 95
mm
Travel length 4.8
m

TKK series

Dirt-repellent cable carriers made of plastic

to the types of TKK series
MT series
Inner height 26 – 87
mm
Inner width 24 – 800
mm
Bending radius 75 – 500
mm
Travel length 10.8
m

MT series

Variable, closed cable carrier with extensive range of accessories

to the types of MT series
TKA series
Inner height 20.5 – 45
mm
Inner width 15 – 250
mm
Bending radius 55 – 300
mm
Travel length 6.5
m

TKA series

Chip-tight right to the end

to the types of TKA series
S/SX Tubes series
Inner height 30 – 104
mm
Inner width 65 – 938
mm
Bending radius 115 – 1300
mm
Travel length 17.8
m

S/SX Tubes series

Extremely robust and sturdy covered steel cable carriers

to the types of S/SX Tubes series
