Apron covers

To protect guideways on machine tools with limited space.

Solutions for tight spaces

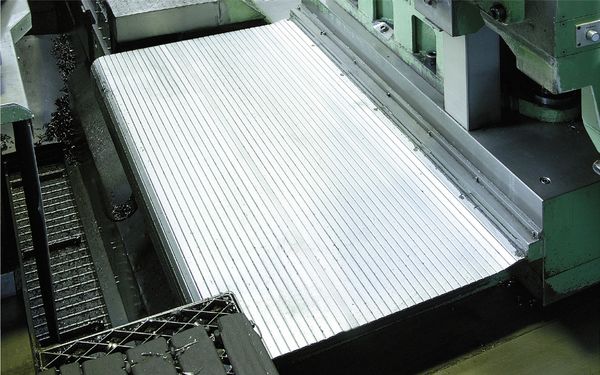

Apron covers can be used wherever space constrictions do not allow the use of telescopic covers. They are positioned directly on the guideway and can be loosely hung on, screwed, bolted, or also wound onto the end of the path without any particular guiding.

Apron covers Tight spaces
Properties
  • Small space requirement
  • Protection against chips and lubricant
  • Splash- and hose-proof
  • Low weight
  • Long lifetime
  • Heat-resistant to 100 °C duration ambient temperature
  • Customized end attachment
  • All apron covers can be supplied with roll-up device
  • Lateral guides are not necessary
  • Short delivery time
  • Attractive price/performance ratio
Designs
Apron covers designs
  1. Design 1

Light, highly flexible solid profile apron cover, flat design

Solid aluminum profile 19 x 3 mm with PU connecting elements

Bending radius possible in both directions

Special widths on request!

BminBmin = 100 mm
BmaxBmax = 950 mm
RminRmin =  25 mm
WeightWeight = 5.6 kg/m2
  1. Design 2N

Light and stable hollow profile apron cover, also for large widths

Hollow aluminum profile 20 x 5.5 mm with PU connecting elements

Bending radius possible in both directions!

Special widths on request!

BminBmin = 100 mm
BmaxBmax = 2950 mm
RminRmin =  30 mm
WeightWeight = 10 kg/m2
  1. Design 2NG

Light and stable hollow profile apron cover, also for large widths.

Hollow aluminum profile 20 x 5,5 mm with PU connecting elements and bending radius in one direction.

Design with a particularly smooth and wipeable surface.

BminBmin = 100 mm
BmaxBmax = 2950 mm
RminRmin =  30 mm
WeightWeight = 10 kg/m2
  1. Design 3

Flexible solid metal apron cover, with joints and a single-sided bending radius

Hollow aluminum profile 25 x 7.5 mm with integrated joint and one-sided bending radius

BminBmin = 100 mm
BmaxBmax = 6000 mm
RminRmin =  40 mm
WeightWeight = 13.2 kg/m2
Definition end connectors

Flexible full metal link aprons with joints can be utilized on different positions within machinery. The configuration can be executed with a variety of connection types, with/without deflections, lateral guides or a roll-up device.

We will be pleased to support you with your application.

Apron covers Definition end connectors
  1. Outside of the profile
  2. Right connector
  3. Bending radius
  4. Left connector
  5. Profile with connecting elements
Connection type
Apron covers connection type Standard end profile

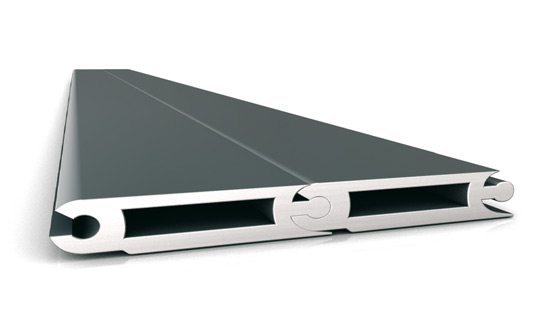

Standard end profile

Apron covers connection type Standard profile with assembly angle

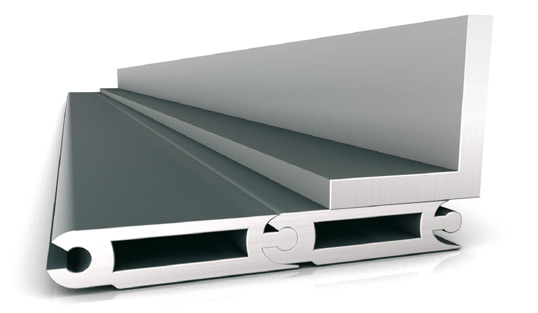

Standard profile with assembly angle

Apron covers connection type Angled connection profile

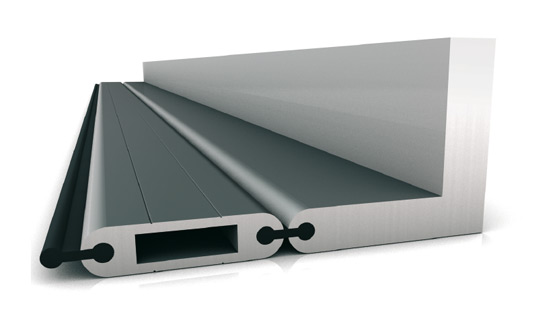

Angled connection profile

Installation variants

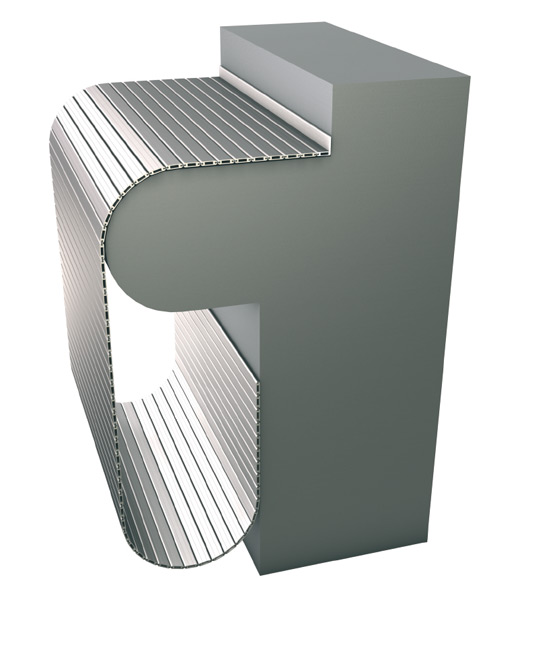

Apron covers installation variants (1)

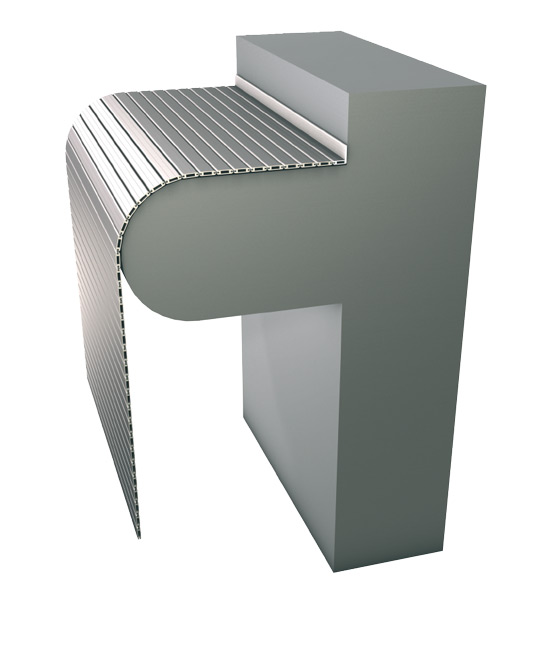

Apron covers installation variants (2)
Apron covers installation variants roll-up devices

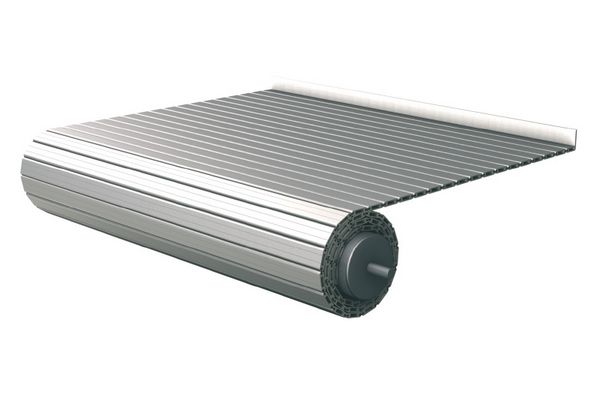

Roll-up devices

Apron cover system solutions

Our apron covers can also be delivered as a system solution. Determination and design is executed according to your individual requirements and can be both operated manually as well as automatically. Let us know your requirements – we will be pleased to advise you!

Apron covers System solutions

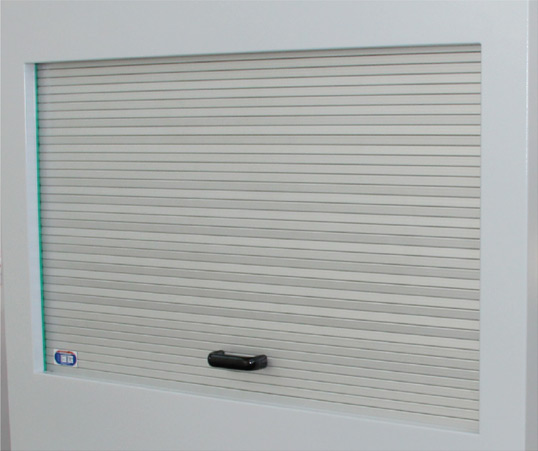

Apron cover system as access protection, manually operable

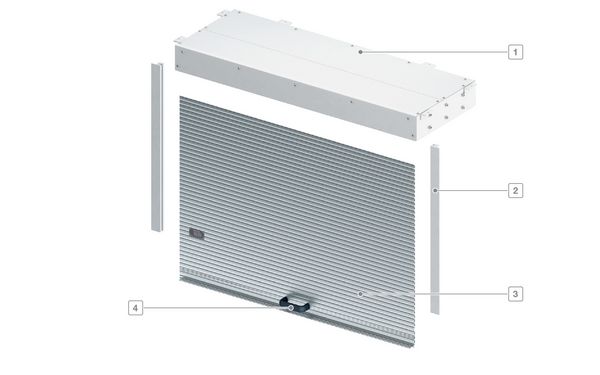

Principle representation of a system solution
Apron covers principle representation of a system solution
  1. Roll-up unit
  2. Guide rails
  3. Apron cover
  4. Operation optional
