Scraper belt conveyors

For disposal of small materials

Transport of the material takes place via carriers which push the material along the floor of ­the housing towards the discharge. Cooling lubricants are collected in the ­conveyor housing and can be fed back ­into the machine circuit via an added-on container or a pumping ­unit. Our scraper belt ­conveyors can be used as ­stand-alone conveyors at machine tools or as ­linked ­conveyor systems. Depending on the design, the material to be conveyed is brought to the required height at a defined incline and then discharged.

Structure

  • Stable sheet metal construction
  • Standardized housing cross-section with variable width
  • Robust worm gear motor with ­torque arm
  • Customized discharge height
  • Customized incline standards – 30°, 45° and 60°
  • Floor mounting or as a push-in ­version into the machine base

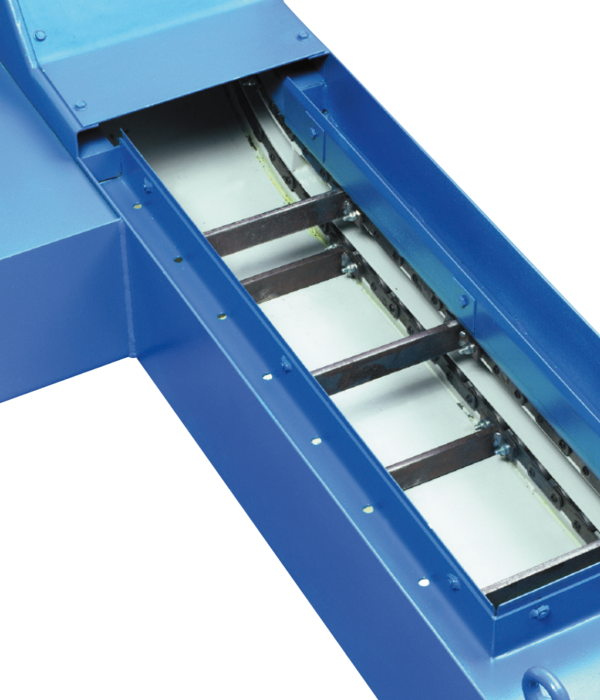

Scraper belt conveyors Sample 1

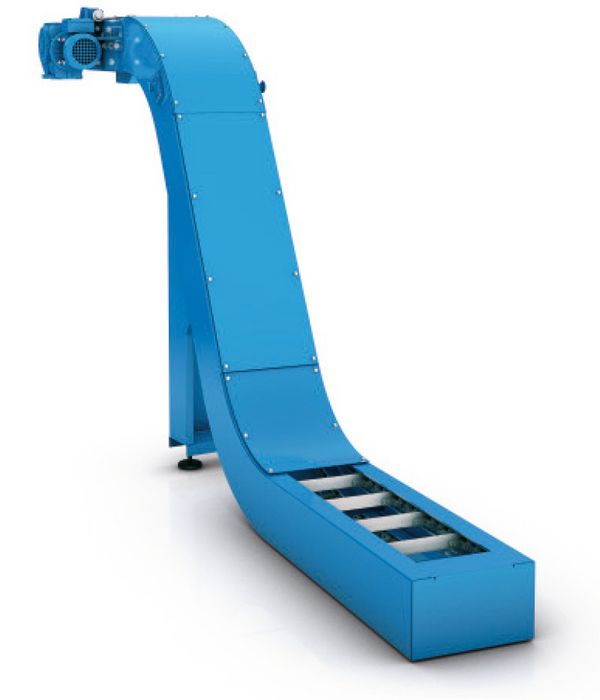

Scraper belt conveyors Sample 2

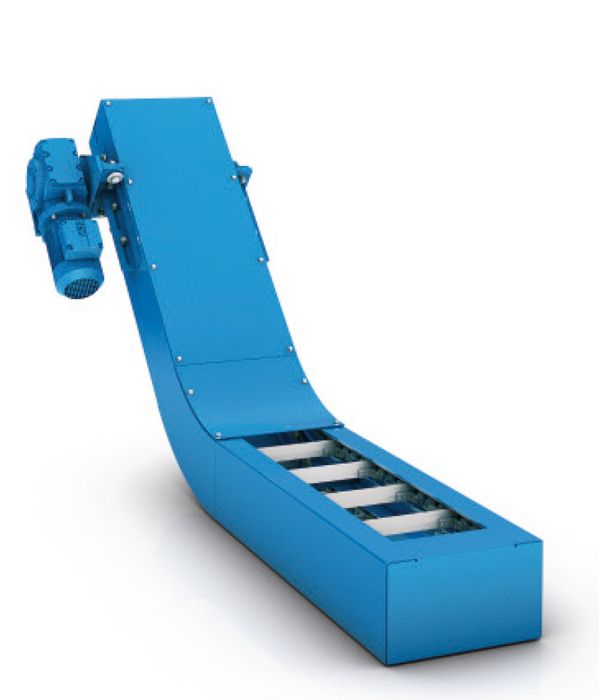

Scraper belt conveyors Sample 3
The solution for small and short chips:
  • Often used for machining of ­non-ferrous metals
  • Can also be used for very hard, short ­chips
  • Casting chips, milling chips and sawing chips

Dimensions

Dimensions of conveyor housing
Scraper belt conveyors Dimensions Conveyor housing Side
Scraper belt conveyors Dimensions Conveyor housing Possible inclines

Possible inclines

Scraper belt conveyors Dimensions Conveyor housing scraper width
Scraper belt conveyors Dimensions Conveyor housing Standard version

Standard version

Scraper belt conveyors Dimensions Conveyor housing Custom version

* The box height can be retracted on request.

Variable dimensions:

BKR = Scraper belt width
BK = Box width
BAG = Feed width
HB = Panel height
HF = Discharge head
AAV = Distance between axles, vertical
LAG = Feed length
LAW = Discharge length
LG = Total length of the conveyor
α = Incline angle

Design-dependent dimensions:

HK = Box height
HKE = Retracted box height
LA = Length of the tail (discharge, incl. tensioning distance)
LU = Length of the tail (feed)

The tensioning station is located at the discharge.

TypeHK
[mm]
HKE*
[mm]
LAW min
[mm]
LA
[mm]
LU
[mm]
KRF 04014011050018073
KRF 063216153620240111
KRF 1003602601000600185
Dimensions as a function of the scraper belt width
Scraper belt conveyors Dimensions Conveyor housing scraper width
TypeBKR
[mm]
BK
[mm]
BAG
[mm]
KRF 040 150, 200, 250,
300, 350, 450,
500, 600
225, 275, 325,
375, 425, 525,
575, 675
130, 180, 230,
280, 330, 430,
480, 580
KRF 063 150, 250, 300,
450, 550, 600,
750, 900
270, 370, 420,
570, 670, 720,
870, 1020
130, 230, 280,
430, 530, 580,
730, 880
KRF 100 150, 300, 375,
450, 525, 600,
750, 900
300, 450, 525,
600, 675, 750,
900, 1050
120, 270, 345,
420, 495, 570,
720, 870

Definitions:

BKR = Scraper belt width
BK = Box width
BAG = Feed width
