Control Cable

Hi-flex Control cables for use in cable carriers

  • Communication between transmitter and receiver
  • Signal for turning on and off/start and stop

Our Series are available in different qualities:

  • 200/200C: Layer stranded cables with PVC outer jacket for light to medium demands
  • 400/400C: Bundle stranded cables with PVC outer jacket for medium heavy demands
  • 700/700C: Bundle stranded cables with PUR outer jacket for heavy demands
  • 1000/1000C: Bundle stranded cables with TPE outer jacket for really heavy loads

Products of Control Cable

CONTROL 200 Cable Type Overview

CONTROL 200

Outer jacket material:
PVC
Shield:
Unshielded
Flexibility:
bending flexible
Demands:
for flexing applications
Up to motion cycles:
2 Million
Travel length up to:
25 m
Stranding:
Layer stranded
more details
CONTROL 200 C Cable Type Overview

CONTROL 200 C

Outer jacket material:
PVC
Shield:
Shielded
Flexibility:
bending flexible
Demands:
for flexing applications
Up to motion cycles:
2 Million
Travel length up to:
25 m
Stranding:
Conductor cores layered
more details
CONTROL 700 600 V Type Overview

CONTROL 400 600 V

Outer jacket material:
PVC
Shield:
Unshielded
Flexibility:
hi-flex
Demands:
for demanding applications
Up to motion cycles:
4 Million
Travel length up to:
100 m
Stranding:
Bundle stranded
more details
CONTROL 400 C 600 V Type Overview

CONTROL 400 C 600 V

Outer jacket material:
PVC
Shield:
Shielded
Flexibility:
hi-flex
Demands:
for demanding applications
Up to motion cycles:
4 Million
Travel length up to:
100 m
Stranding:
Bundle stranded
more details
CONTROL 700 600 V Type Overview

CONTROL 700 600 V

Outer jacket material:
PUR
Shield:
Unshielded
Flexibility:
hi-flex
Demands:
for high demandeing applications
Up to motion cycles:
7 Million
Travel length up to:
500 m
Stranding:
Bundle stranded
more details

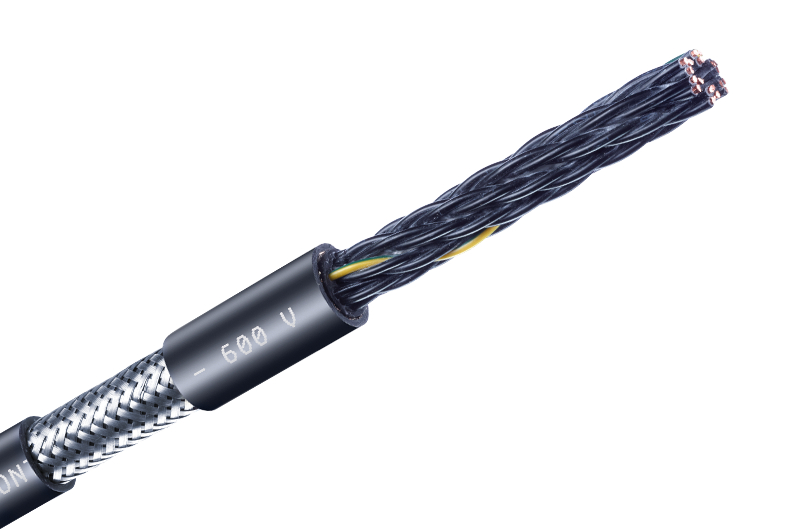

CONTROL 700 C 600 V Type Overview

CONTROL 700 C 600 V

Outer jacket material:
PUR
Shield:
Shielded
Flexibility:
hi-flex
Demands:
for high demandeing applications
Up to motion cycles:
7 Million
Travel length up to:
500 m
Stranding:
Bundle stranded
more details
CONTROL 1000 TPE 300/500 V Type Overview

CONTROL 1000 TPE 300/500 V

Outer jacket material:
TPE
Shield:
Unshielded
Flexibility:
hi-flex
Demands:
for very high demanding applications
Up to motion cycles:
10 Million
Travel length up to:
1000 m
Stranding:
Bundle stranded
more details
CONTROL 1000 C TPE 300/500 V Type Overview

CONTROL 1000 C TPE 300/500 V

Outer jacket material:
TPE
Shield:
Shielded
Flexibility:
hi-flex
Demands:
for very high demanding applications
Up to motion cycles:
10 Million
Travel length up to:
1000 m
Stranding:
Bundle stranded
more details
Type
Outer jacket material
Shield
Flexibility
Demands
Up to motion cycles
Travel length up to
Stranding
CONTROL 200 PVC Unshielded bending flexible for flexing applications 2 Mio 25 m Layer stranded
CONTROL 200 C PVC Shielded bending flexible for flexing applications 2 Mio 25 m Conductor cores layered
CONTROL 400 600 V PVC Unshielded hi-flex for demanding applications 4 Mio 100 m Bundle stranded
CONTROL 400 C 600 V PVC Shielded hi-flex for demanding applications 4 Mio 100 m Bundle stranded
CONTROL 700 600 V PUR Unshielded hi-flex for high demandeing applications 7 Mio 500 m Bundle stranded
CONTROL 700 C 600 V PUR Shielded hi-flex for high demandeing applications 7 Mio 500 m Bundle stranded
CONTROL 1000 TPE 300/500 V TPE Unshielded hi-flex for very high demanding applications 10 Mio 1000 m Bundle stranded
CONTROL 1000 C TPE 300/500 V TPE Shielded hi-flex for very high demanding applications 10 Mio 1000 m Bundle stranded

Matching with

Cable carriers made of plastic and steel – Cable carriers

Whether cable carriers made of steel, plastic or hybrid product – at KABELSCHLEPP® the conditions of your application determine the material. After assessing your application parameters we will recommend a product that represents the optimum in terms of load capacity, durability and longevity. The material itself is secondary. You can choose from our product portfolio of thousands of types between standard widths and individual millimeter grids – just as required.

to Cable carriers

Ready-to-connect cable carrier systems – TOTALTRAX®

From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.

to TOTALTRAX®

Accessories

For optimum placement with dynamic use of cables.

to Strain relief devices
