SZL strain reliefs

Properties

  • Gentle on the cables through large contact area with the cables.
  • Simple mounting without tools.
  • Cost-effective
  • Assembly – easy, fast and without tools
  • Large-area surrounding of the cables
  • Low height
  • Without screws and cable ties
  • Contact force defined by spring tension bracket
  • Suitable for standard commercial profile rails
  • Protected against vibrations
  • Long service life for dynamic applications
  • Also usable as strain relief in control cabinets
SZL strain reliefs Start 2

Technical data

Available sizes
SZL strain reliefs Front
SZL strain reliefs Side EN
TypeMaterial no.for cable Ø
[mm]
Width B atHeight H
[mm]
Ø min
[mm]
Ø max
[mm]
SZL 824989> 5.0 – 8.0161628
SZL 1024990> 8.0 – 10.5202030
SZL 1424991> 10.5 – 14.5232635
SZL 1824992> 14.5 – 18.0253240
SZL 2224993> 18.0 – 22.0303644
SZL 2724994> 22.0 – 27.0343950
SZL 3224995> 27.0 – 32.0394456
Fixing options
SZL strain reliefs Clipped C-Rail

1. Clipped into a C-profile

SZL strain reliefs Clipped D-Rail

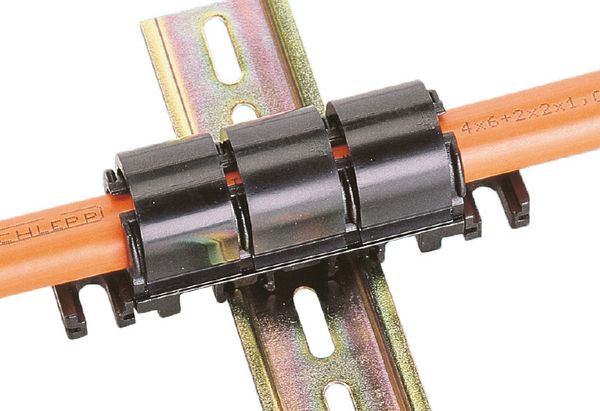

2. Clipped onto a DIN rail

SZL strain reliefs Clipped Double C-Rail

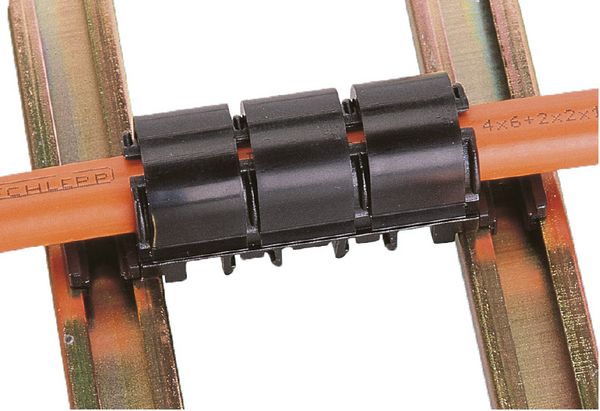

3. Inserted into two C-rails

SZL strain reliefs Directly bolted

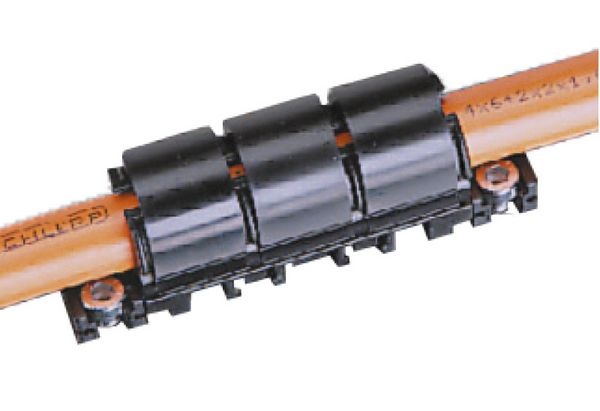

4. Directly bolted on

Installation of the SZL strain relief

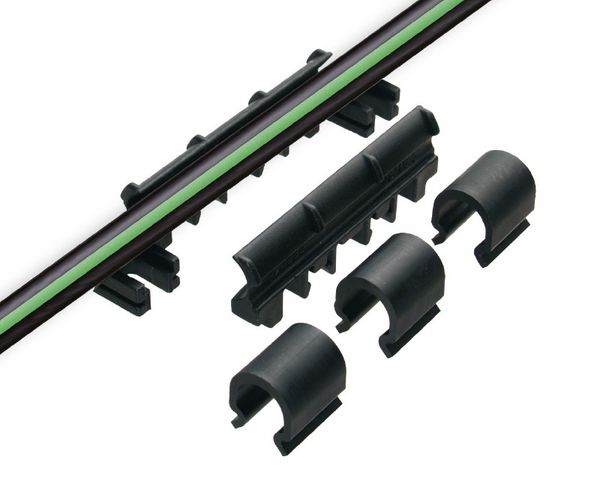

SZL strain reliefs Installation 1

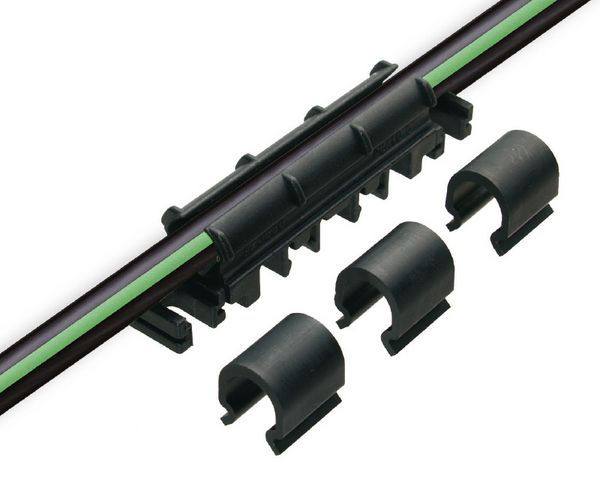

SZL strain reliefs Installation 2

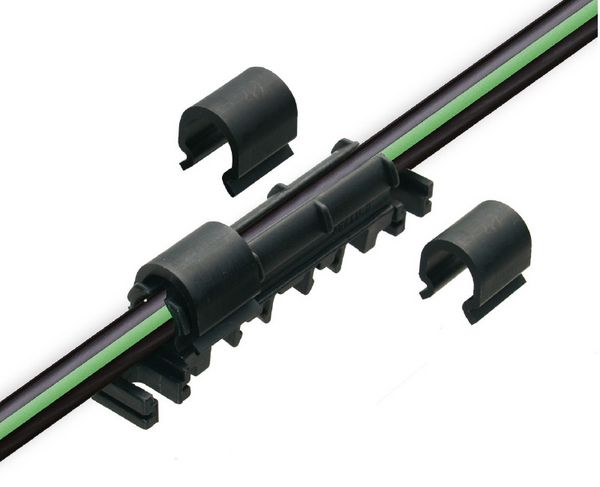

SZL strain reliefs Installation 3
SZL strain reliefs Installation 4
