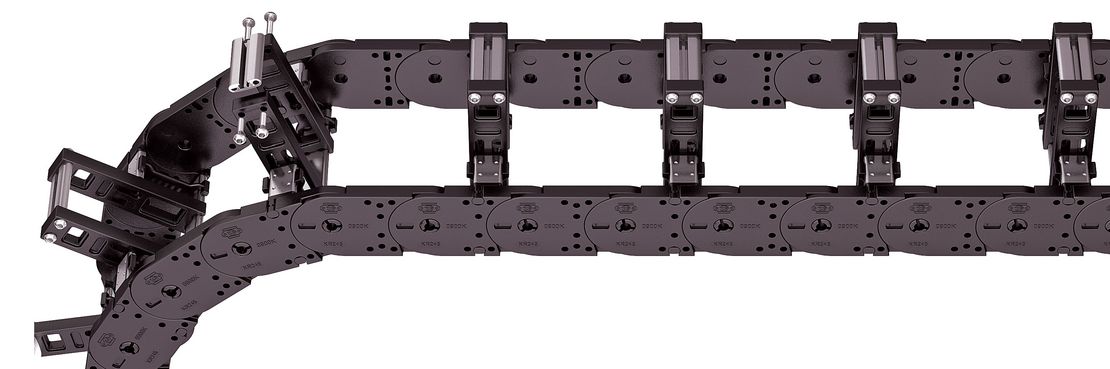

KC0900 RMA

Aluminum stay RMA – mounting frame stay

Properties

Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
The mounting frame stay can be mounted either inside or outside in the bending radius.
Available customized in 1 mm width sections.
Outside/inside: Screw-fixing easy to release.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_i 200 – 500 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Intrinsic cable carrier weight
Determining the intrinsic cable carrier weight strongly depends on the selected stay arrangement. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	B_i [mm] ^*	B_i1min [mm]	B_i3min [mm]	B_k [mm]	B_EF [mm]
90	58	78.5	200 – 500	40	40	B_i + 31	B_i + 45

^* in 1 mm width sections

H_i [mm]
130	160	200

KR [mm]
130	150	190	245	300	385

Assembly instructions

RMA 1 – assembly to the inside:
Gliding application is not possible when using assembly version RMA 1.
Observe minimum KR:
H_i = 130 mm: KR_min = 150 mm
H_i = 160 mm: KR_min = 190 mm
H_i = 200 mm: KR_min = 245 mm

RMA 2 – assembly to the outside:
The cable carrier has to rest on the side bands and not on the stays.
Guiding in a channel is required for support. Please contact our technical support at technik@kabelschlepp.de to find the corresponding guide channel.
Please note the operating and installation height.

Order example

KC0900

Type

400

B_i [mm]

RMA2

Stay variant

150

KR [mm]

1890

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: technik@kabelschlepp.de

End connectors

Universal end connectors UMB plastic (standard)

The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom, face on or from the side.

K0900 Universal end connectors UMB – plastic

Connection point

F – fixed point
M – driver

Connection type

U – universal mounting bracket

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Wir empfehlen die Verwendung von Zugentlastungen vor Mitnehmer und Festpunkt.
