Stay arrangement on every 2nd chain link, standard (HS: half-stayed)
Stay arrangement on each chain link (VS: fully-stayed)
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Intrinsic cable carrier weight
Determining the intrinsic cable carrier weight strongly depends on the selected stay arrangement. Please contact us.
t
[mm]
|
hi
[mm]
|
hG
[mm]
|
Bi
[mm]
* |
Bi1min
[mm]
|
Bi3min
[mm]
|
Bk
[mm]
|
BEF
[mm]
|
|---|---|---|---|---|---|---|---|
| 125 | 72 | 96 | 200 – 800 | 40 | 40 | Bi + 45 | Bi + 45 |
Hi
[mm]
| ||
|---|---|---|
| 130 | 160 | 200 |
KR
[mm]
| ||||||
|---|---|---|---|---|---|---|
| 180 | 220 | 260 | 300 | 340 | 380 | 500 |
MC1250
400
RMA2
300
4250
HS

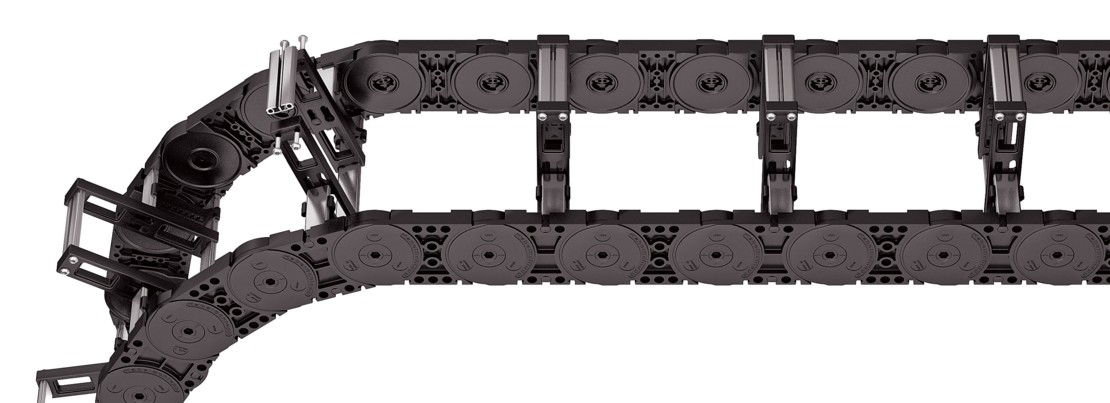

RMA 1 – assembly to the inside:
Gliding application is not possible when using assembly version RMA 1.
Observe minimum KR:
Hi = 130 mm: KRmin = 180 mm
Hi = 160 mm: KRmin = 180 mm
Hi = 200 mm: KRmin = 220 mm
RMA 2 – assembly to the outside:
The cable carrier has to rest on the side bands and not on the stays.
Guiding in a channel is required for support. Please contact our technical support at technik@kabelschlepp.de to find the corresponding guide channel.
Please note the operating and installation height.
The universal mounting brackets (UMB) are made from plastic and can be mounted from the top, from the bottom, face on or from the side.
Recommended tightening torque: 54 Nm for cheese-head screws ISO 4762 - M10 - 8.8
F – fixed point
M – driver
U – universal mounting bracket
Plastic link end connector, steel end connector. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.
F – fixed point
M – driver
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection
I – connection surface inside
A – connection surface outside
Plastic/steel
F
A
A
UMB
M
U
Plastic/steel
UMB
F
M
A
U
A
We recommend the use of strain reliefs at the driver and fixed point.
