S/SX1250 RS 2

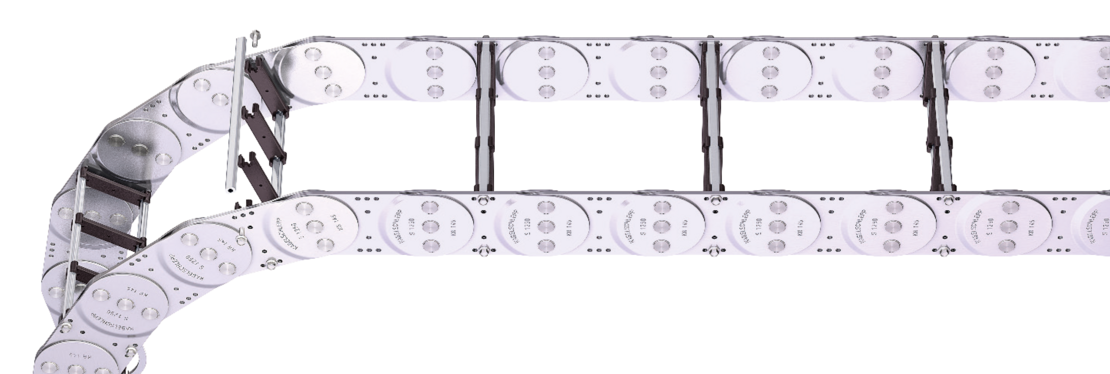

Aluminum stay RS 2 – frame stay narrow, threaded joint

Properties

Quick to open and close
Aluminum profile bars for light to medium loads. Simple threaded joint
Available customized in 1 mm width sections.
Outside/inside: Threaded joint easy to release.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_k 200 – 500 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	B_i [mm]	B_St [mm] ^*	B_k [mm]	B_EF [mm]	q_k [kg/m]
125	72	94	104	156 – 456	176 – 476	B_St + 24	B_St + 30	12.88 – 13.71

^* in 1 mm width sections

KR [mm]
145	200	220	260	300	340	380	420	460	500	540	600	1000

Order example

S1250

Type

400

B_St [mm]

RS 2

Stay variant

200

KR [mm]

Material

4750

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: technik@kabelschlepp.de

Inner distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2^nd chain link for stay mounting (HS – half-stayed).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping onto a socket (available as an accessory).
The socket additionally acts as a spacer between the dividers and is available in 1 mm increments between 3 – 50 mm (Version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	12.5	15	10	–

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	12.5	15	10	2

The dividers can be moved in the cross section.

Divider system TS3

with height separation consisting of plastic partitions

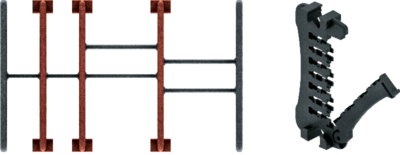

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

Divider version A

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	10^*/12	14	10	2

^* for VR0

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using partitions with a_x > 49 mm we recommended an additional preferential central support.

Order example

TS3

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [n_T].
If using divider systems with height separation (TS1), please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.
The end dividers are part of the divider system and don‘t have to be ordered separately.

End connectors

End connectors – steel

End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and changed later on, if necessary.

Caution: The standard connection variant FAI/MAI is only possible from B_k of 125 mm.

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint to outside (standard)
I – threaded joint to inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Connection surface

I – connection surface inside
A – connection surface outside

Order example

Steel

End connector

Connection point

Connection type

Connection surface

End connector

Steel

Connection point

Connection type

Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
