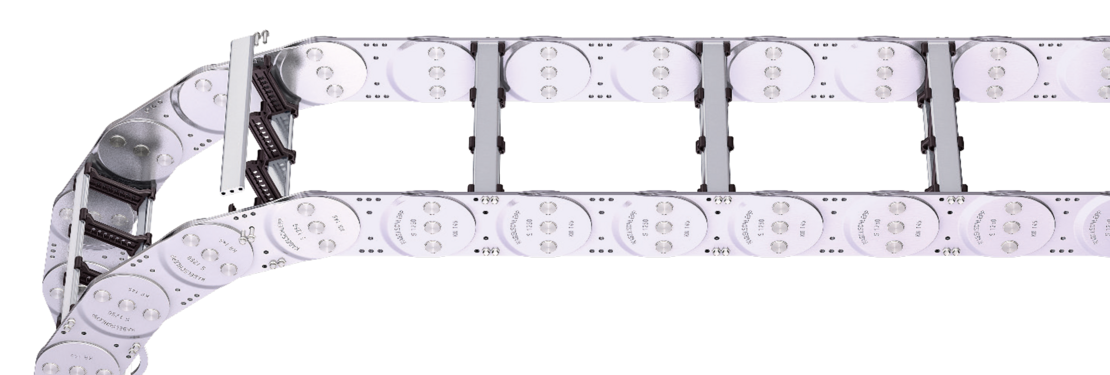

S/SX1250 RV

Aluminum stay RV – reinforced frame stay

Properties

Aluminum profile bars for medium to heavy loads and large cable carrier widths. Double threaded joint on both sides.
Available customized in 1 mm grid.
Inside/outside: Threaded joints easy to release.

Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2^nd chain link, standard (HS: half-stayed)

Stay arrangement on each chain link (VS: fully-stayed)

B_k 200 – 600 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

t [mm]	h_i [mm]	h_G [mm]	h_G' [mm]	B_i [mm]	B_St [mm] ^*	B_k [mm]	B_EF [mm]	q_k [kg/m]
125	72	94	104	154 – 554	176 – 576	B_St + 24	B_St + 30	13.83 – 17.11

^* in 1 mm width sections

KR [mm]
145	200	220	260	300	340	380	420	460	500	540	600	1000

Order example

S1250

Type

400

B_St [mm]

Stay variant

200

KR [mm]

Material

4750

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: technik@kabelschlepp.de

Inner distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2^nd chain link for stay mounting (HS – half-stayed).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	13	16	10	–

The dividers can be moved in the cross section.

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	13	16	10	2

The dividers can be moved in the cross section.

Divider system TS2

with partial height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	13	21	15	2

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 6 mm).

Divider system TS3

with height separation consisting of plastic partitions

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	n_{T min}
A	4	16/42^*	8	2

^* for aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Aluminum partitions with 1 mm increments with a_x > 42 mm are also available.

a_x (center distance of dividers) [mm]
a_c (nominal width of inner chamber) [mm]
16 8	18 10	23 15	28 20	32 24	33 25	38 30	43 35	48 40	58 50	64 56	68 60
78 70	80 72	88 80	96 88	112 104	128 120	144 136	160 152	176 168	192 184	208 200

When using plastic partitions with a_x > 112 mm, we recommend an additional center support with a twin divider (S_T = 4 mm). Twin dividers are also suitable for retrofitting in the partition system.

Order example

TS3

Divider system

Version

n_T

Chamber

a_x

VR1

VR3

Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [n_T ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [a_T/a_x] (as seen from the driver).
If using divider systems with height separation (TS1 – TS3), please also state the positions (e.g. VD23) viewed from the left driver belt. You are welcome to add a sketch to your order.
The end dividers are part of the divider system and don‘t have to be ordered separately.

End connectors

End connectors – steel

End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and changed later on, if necessary.

Caution: The standard connection variant FAI/MAI is only possible from B_k of 125 mm.

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint to outside (standard)
I – threaded joint to inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Connection surface

I – connection surface inside
A – connection surface outside

Order example

Steel

End connector

Connection point

Connection type

Connection surface

End connector

Steel

Connection point

Connection type

Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
