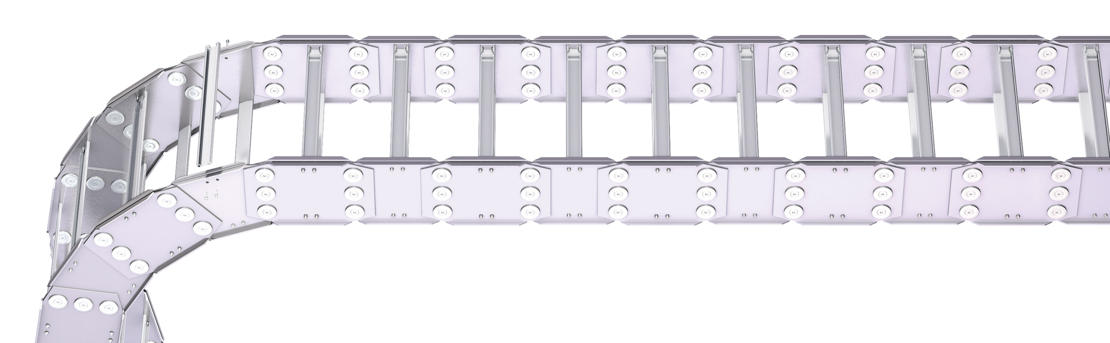

S/SX5000 Steel stay

Steel stay special design – steel frame stay, bolted

Properties

Steel profile bars for extremely high additional loads and very large cable carrier widths. Double threaded joint on both sides.
Available customized in 1 mm grid.
Inside/outside: Threaded joint can be released.

Stay arrangement on each chain link (VS: fully-stayed)

B_k 250 – 1200 mm in 1 mm width sections

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t for odd number of chain links

t [mm]	h_i [mm]	h_G [mm]	B_i [mm]	B_St [mm] ^*	B_k [mm]	a_{T max} [mm]	a_{x max} [mm]	n_{T min}	q_k [kg/m]
200	150	200	133 – 1083	171 – 1121	B_St + 79	150	150	2	42.50 – 52.00

^* in 1 mm width sections

KR [mm]
500 – 1200

^** individual intermediate sizes available

End connectors

End connectors – steel

End connectors made of steel. The connection variants on the fixed point and on the driver can be combined and, if required, changed afterwards.

Type	l₁ [mm]	l₂ [mm]	l₃ [mm]	l₄ [mm]	X₁ [mm]	X₂ [mm]	X₃ [mm]	Y₁ [mm]	Y₂ [mm]	Y₃ [mm]	Y₄ [mm]	Y₅ [mm]
S/SX5000	300	200	75	25	130	210	290	12	18	90	15	50
S/SX6000	400	300	100	50	130	210	290	12	18	90	15	50
S/SX7000	400	300	100	50	140	220	300	12	22	90	15	50
S/SX8000	400	300	100	50	140	220	300	12	22	90	15	50

Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside
