TKA38.080

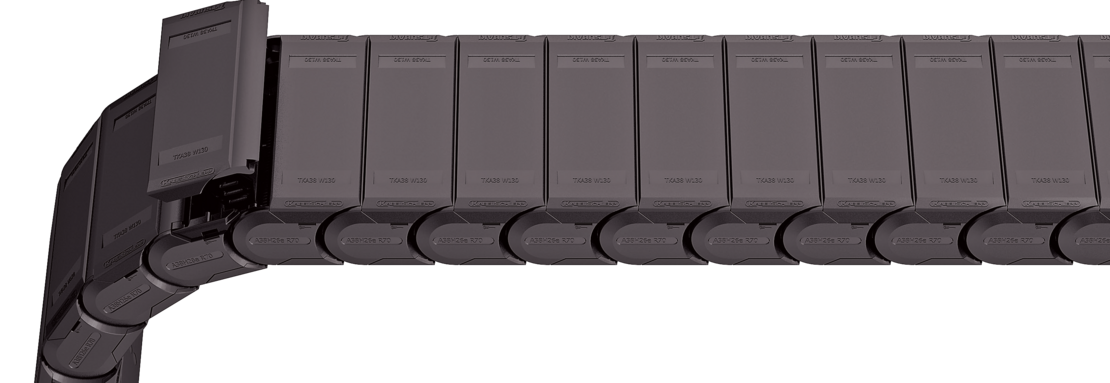

Stay variant 080 – covered on both sides with outside detachable cover

Properties

Plastic cover for rough environmental conditions with dirt, chips or spray water.
Fully detachable on one side in any position.
Outside: very quick release.

Stay arrangement on each chain link (VS: fully-stayed)

B_i 25 – 130 mm

All pictographs

Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Der maximale Leitungsdurchmesser ist stark abhängig vom Krümmungsradius und dem gewünschten Leitungstyp.
Bitte sprechen Sie uns an.

Calculating the cable carrier length

Cable carrier length L_K: L_K≈ L_S/2 + L_B

Cable carrier length L_k rounded to pitch t

Berechnung der Kettenlänge

Kettenlänge L_K: L_K≈ L_S/2 + L_B

Kettenlänge L_k aufgerundet auf Teilung t

t [mm]	h_i [mm]	h_G [mm]	B_k [mm]	q_k [kg/m]
38.5	26	36.75	B_i + 16	0.77 – 1.47

B_i [mm]
25	38	58	78	103	130

KR [mm]
70	95	120	145	170	195	230

Order example

TKA38

Type

080

Stay variant

B_i [mm]

145

KR [mm]

1155

L_k [mm]

Stay arrangement

Our technical support can provide help for gliding arrangements: technik@kabelschlepp.de

Inner distribution

Divider systems

The divider system is mounted on every 2^nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (Version A).

The dividers are easily attached to the stay for applications with transverse accelerations and for applications laying on the side by simply turning them.
The locking cams click into place in the locking grids in the covers (Version B).

Montiert wird das Trennstegsystem standardmäßig an jedem 2. Kettenglied.

Standardmäßig sind Trennstege bzw. das komplette Trennstegsystem (Trennstege mit Höhenseparierungen) im Querschnitt verschiebbar (Version A).

Für Anwendungen mit Querbeschleunigungen und auf der Seite liegende Anwendungen sind die Trennstege durch einfaches Wenden auf dem Steg fixierbar. Hierbei rasten die Arretierungsnocken in den Rastprofilen der Deckel ein (Version B).

Divider system TS0

without height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	3.5	7	5	–	–
B	A	8	6	2	–

B_i [mm]

a_{T min} [mm]

8.5

103

7.5

130

Divider system TS1

with continuous height separation

Vers.	a_{T min} [mm]	a_{x min} [mm]	a_{c min} [mm]	a_{x grid} [mm]	n_{T min}
A	3.5	7	5	–	2
B	A	8	6	2	2

B_i [mm]

a_{T min} [mm]

8.5

103

7.5

130

Order example

TS1

Divider system

Version

n_T

VD0

VD1

Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [n_T].

If using divider systems with height separation (TS1), please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

Universal end connectors UMB – plastic (standard)

The universal end connectors (UMB) are made from plastic and can be mounted from the top, from the bottom, or face on.

Recommended tightening torque: 3 Nm for cheese-head screws ISO 4762 - M4 x 12

B_i [mm]	B_EF [mm]	n_z
25	43	2
38	56	3
58	76	5
78	96	7
103	121	9
130	148	11

The end connectors are also available as an option without cover sheets. Please state when ordering.

TKA38 Universal-Anschlusselemente UMB – Kunststoff (Standard)

Connection point

F – fixed point
M – driver

Connection type

U – universal end connector

Order example

UMB

End connector

Connection point

Connection type

End connector

UMB

Connection point

Connection type
