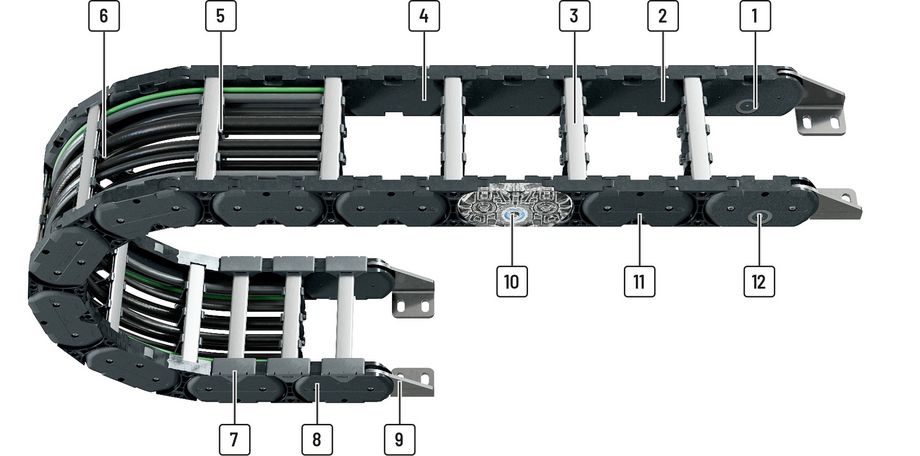

Very smooth running of the roller system due to almost continuous running surface.
A non-slip structure on the running surface prevents one-sided roller wear after a standstill.
Roller chain for travel distances up to 1500 m.
RSD version with roller damping to reduce noise and wear by approx. 50 %.
Type | hi [mm] | Bi [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|
| TKHP85 | 58 | 100 – 800 | 85 | 240 – 400 |
| TKHP90 | 92 | 100 – 800 | 90 | 250 – 500 |
| TKHP85-R / TKHP85-RSD | 58 | 100 – 800 | 85 | 240 – 400 |
| TKHP90-R / TKHP90-RSD | 92 | 100 – 800 | 90 | 250 – 500 |
Reliable, robust with high availability. Your benefit from many years of experience combined with ongoing optimization, proven in tests and praxis. TRAXLINE® cables stand for competent system-supply with worldwide on-site service.
to TRAXLINE®From pre-assembled cables to complex, ready-to-connect systems, from lot size 1 to series – worldwide thousands of KABELSCHLEPP systems are reliably in use. The benefits of TOTALTRAX® systems are obvious: just one person of contact, one order number, delivery just-in-time to your production facility, shortest downtimes thanks to plug&play installation.
to TOTALTRAX®Reliable unrolling and optimum gliding for long travel lengths
to Support traysFor optimum placement with dynamic use of cables
to Strain relief devices
