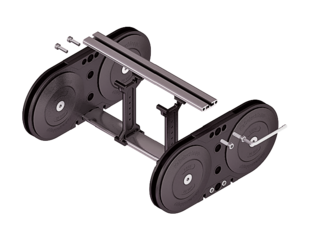

Frame stay, solid

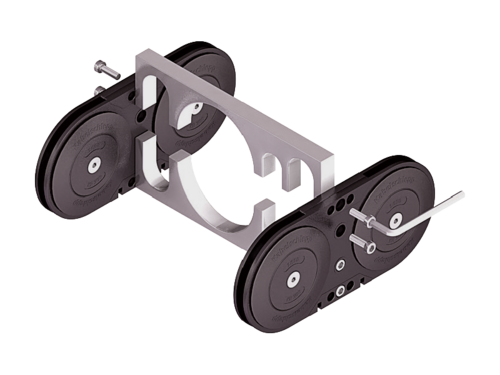

Aluminum stay LG
Optimum cable routing in the neutral bending line.

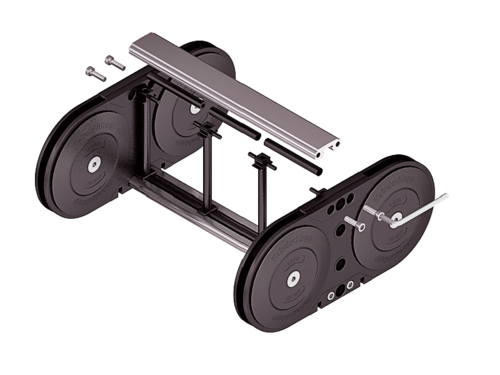

Aluminum stay RMR
Gentle cable guiding with rollers.
KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
250 | 640 | 740 | 1115 | 485 |
300 | 740 | 840 | 1272 | 535 |
350 | 840 | 940 | 1430 | 585 |
400 | 940 | 1040 | 1587 | 635 |
450 | 1040 | 1140 | 1744 | 685 |
500 | 1140 | 1240 | 1901 | 735 |
550 | 1240 | 1340 | 2058 | 785 |
Load diagram for unsupported length depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Belastungsdiagramm für freitragende Länge in Abhängigkeit von der Zusatzlast.
Bei längeren Verfahrwegen ist ein Durchhang der Energieführung je nach Einsatzfall technisch zulässig.
Abaque des chargespour longueur autoportante en fonction de la charge additionnelle.
Pour les courses plus longues, une flèche de la chaîne porte-câbles est techniquement admissible au cas par cas.
Intrinsic cable carrier weight qk = 13 kg/m. For other inner widths, the maximum additional load changes.
The gliding cable carrier must be guided in a channel. More information
We recommend the use of glide shoes for gliding applications.
Für eine gleitende Anwendung ist die Verwendung von Gleitschuhen erforderlich.
Pour une application replongeante, l’utilisation de patins de glissement est indispensable.
