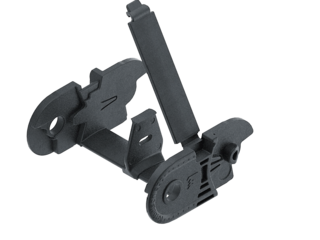

Frame with outside opening crossbars

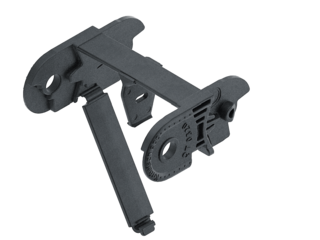

Frame with inside opening crossbars
KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
---|---|---|---|---|
28 | 81.5 | 101.5 | 152 | 73 |
38 | 101.5 | 121.5 | 184 | 83 |
48 | 121.5 | 141.5 | 215 | 93 |
75 | 175.5 | 195.5 | 300 | 120 |
100 | 225.5 | 245.5 | 379 | 145 |
125 | 275.5 | 295.5 | 457 | 170 |
Load diagram for unsupported length depending on the additional load.
Intrinsic cable carrier weight qk = 0.40 kg/m with Bi 38 mm. For other inner widths, the maximum additional load changes.
The gliding cable carrier must be guided in a channel. More information
Only design 030 can be used for a gliding arrangement.
